ANSI C Based OPC UA Client SDK/Toolkit
Unified Automation GmbH www.unified-automation.com

ANSI C Based OPC UA Client SDK/Toolkit

Write your own OPC UA Client in ANSI C

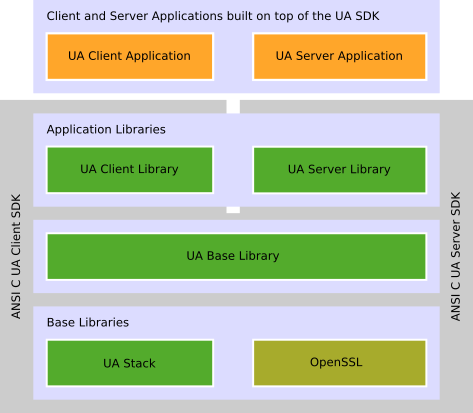

The UA SDK is an ANSI C library designed for developing compact OPC UA Clients e.g. embedded or headless devices like PLC or railmount controllers and IPC. The ANSI C SDK is designed for single threaded use. The Client SDK is also available bundled with the Server SDK. Both use the same UA Base Library on top of the ANSI C OPC UA Stack.

Supported Features and Profiles

  • Data Access
  • Events
  • Methods
  • Alarms & Conditions
  • Historical Acces

Free UaModeler for  implementing CompanionModels and code generation included !

Note: information provided here is for advertising purpose only and not legal binding product description. Product is subject to permanent change, improvement and enhancement. Refere to Unified Automation official reference documentation here.

Product details

Category: SDK Subcategory: Commercial SDK

Supported Profiles and Facets

Application Profiles:

  • UACore 1.03
    • Standard UA Client Profile
  • UACore 1.04
    • Minimum UA Client Profile
    • Standard UA Client 2017 Profile

Security Policies:

  • UACore 1.03
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – Basic256Sha256
    • SecurityPolicy – None
  • UACore 1.04
    • SecurityPolicy - Aes256-Sha256-RsaPss
    • SecurityPolicy [A] - Aes128-Sha256-RsaOaep
    • SecurityPolicy [B] – Basic256Sha256
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – None
  • UACore 1.05
    • SecurityPolicy - Aes256-Sha256-RsaPss
    • SecurityPolicy [A] - Aes128-Sha256-RsaOaep
    • SecurityPolicy [B] – Basic256Sha256
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – None

User Tokens:

  • UACore 1.03
    • User Token – Anonymous Facet
    • User Token – User Name Password Client Facet
    • User Token – X509 Certificate Client Facet
  • UACore 1.04
    • User Token – Anonymous Client Facet
    • User Token – Anonymous Facet
    • User Token – User Name Password Client Facet
    • User Token – X509 Certificate Client Facet
  • UACore 1.05
    • User Token – Anonymous Facet
    • User Token – User Name Password Client Facet
    • User Token – X509 Certificate Client Facet
