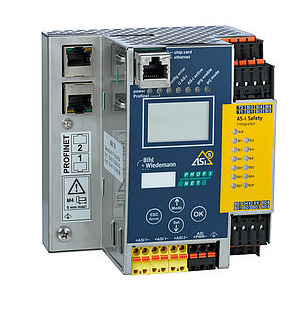

ASi-5/ASi-3 PROFINET Gateway with integrated Safety Monitor

Bihl+Wiedemann | BWU4000

ASi-5/ASi-3 PROFINET Gateway with integrated Safety Monitor, 2 ASi-5/ASi-3 masters

·         OPC UA server

·         integrated decoupling, max. 4 A per ASi circuit

·         ASi current measurement in the gateway

·         6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4)

·         expandable to max. 62 x 2 channels safe inputs, 1922 x 2 channels safe inputs in max. configuration

·         6 release circuits (6 x electronic safe outputs)

·         expandable to max. 64 safe outputs

·         1984 safe outputs in max. configuration

·         Safe Link

·         diagnostic and configuration via PROFINET or Ethernet diagnostic interface

·         duplicate address recognition

·         ASi fault detector

·         programming in C optional

·         IP20

Introduction

Most of the Industry 4.0 applications rely on the sensor and actuator data out of the machine.

With the new Bihl+Wiedemann BWU3862 Gateway with ASi-5 and an integrated OPC UA server, you are able to get this data directly out of the machine – without any preprocessing.

Get the information wherever needed – at your HMI panel or your cloud services
