OPC UA Proxy
Integration Objects integrationobjects.com

OPC UA Proxy

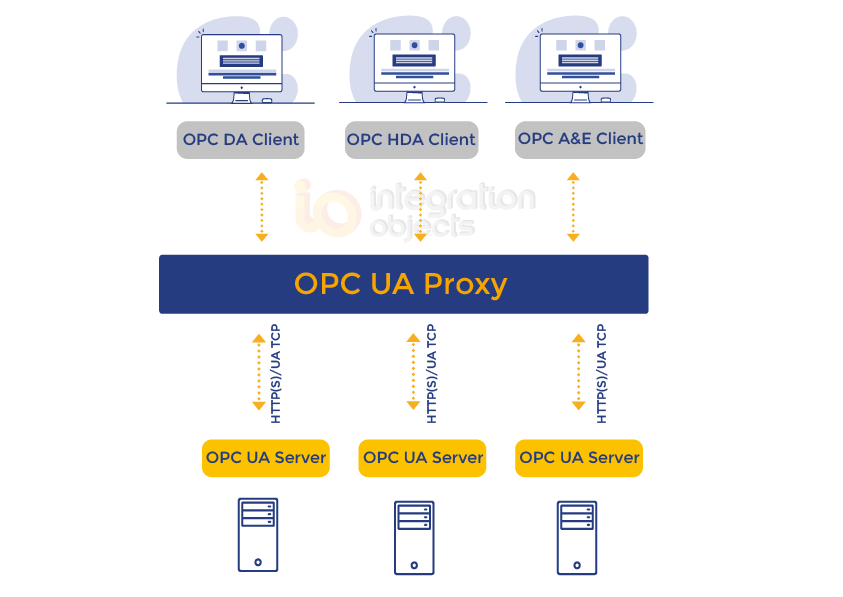

OPC UA Proxy is a software component of Integration Objects’ OPC UA Wrapper designed to bridge OPC Classic client applications and OPC Unified Architecture (OPC UA) servers. It enables existing OPC Data Access (DA), Historical Data Access (HDA), and Alarms & Events (A&E) clients to communicate with OPC UA servers without requiring those client applications to be redesigned for OPC UA.

The proxy provides an interoperability layer between OPC Classic interfaces and OPC UA services, facilitating communication across networks and helping organizations extend the useful life of existing industrial applications while adopting OPC UA technology.

By enabling OPC Classic clients to access data exposed by OPC UA servers, OPC UA Proxy supports modernization initiatives, system integration, and migration toward more interoperable industrial architectures, including Industrial Internet of Things (IIoT) environments.

Designed for industrial automation engineers, system integrators, and organizations transitioning to OPC UA, OPC UA Proxy offers a practical way to connect legacy OPC Classic applications with modern OPC UA infrastructure.

Product details

Markets:
  • Aerospace & Defense
  • Automotive
  • Chemicals
  • Energy and Power
  • Food & Beverages
  • Machine Manufacturing
  • Medical Devices
  • Metals & Mining
  • Oil & Gas
  • Packaging
  • Pharmaceuticals
  • Pulp & Paper
  • Semiconductor & Electronics
  • Water & Waste Management
 Category: Gateway

Supported Profiles and Facets

Application Profiles:

  • UACore 1.04
    • Standard 2017 UA Server Profile

Security Policies:

  • UACore 1.04
    • SecurityPolicy [B] – Basic256Sha256
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – None

User Tokens:

  • UACore 1.04
    • User Token – Anonymous Facet
    • User Token – User Name Password Server Facet
    • User Token – X509 Certificate Server Facet

Capacities
Max. SecureChannels: 100
Max. Sessions: 100
Max. Subscriptions: 100
Max. Monitored Items: 10000
Max. Monitored Items Per Subscription: 1000
Monitored Item Queue: 100
Publish Request Queue: 20
Fastest Sampling: 1000
Fastest Publishing: 100
Number Of Continuation Points: 100

Supported Profiles and Facets

Application Profiles:

  • UACore 1.04
    • Standard UA Client 2017 Profile

Security Policies:

  • UACore 1.04
    • SecurityPolicy [B] – Basic256Sha256
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – None

User Tokens:

  • UACore 1.04
    • User Token – Anonymous Facet
    • User Token – User Name Password Client Facet
    • User Token – X509 Certificate Client Facet

Capacities
Max. SecureChannels: 250
Max. Sessions: 250
Max. Subscriptions: 250
Max. Monitored Items Per Subscription: 1000
Monitored Item Queue: 100
Publish Request Queue: 20
Fastest Publishing: 100
Number Of Continuation Points: 100
  • Data Access 2.05a
  • Data Access 3.0
  • Alarms and Events
  • Historical Data Access
  • Data Access 2.05a
  • Data Access 3.0
  • Alarms and Events
  • Historical Data Access
