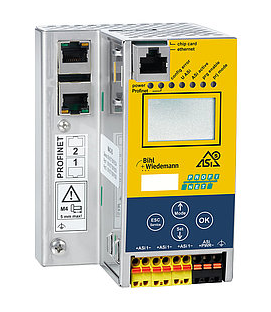

ASi-5/ASi-3 PROFIsafe via PROFINET Gateway with integrated Safety Monitor

Bihl+Wiedemann | BWU4018

ASi-5/ASi-3 PROFIsafe via PROFINET Gateway with integrated Safety Monitor, 1 ASi-5/ASi-3 master

·         OPC UA server

·         integrated decoupling, max. 4 A per ASi circuit

·         ASi current measurement in the gateway

·         expandable to max. 31 x 2 channels safe inputs

·         1891 x 2 channels safe inputs in max. configuration

·         expandable to max. 64 safe outputs, 1984 safe outputs in max. configuration

·          PROFIsafe (F-CPU) and Safe Link

·         diagnostic and configuration via PROFINET or Ethernet diagnostic interface

·         duplicate address recognition, ASi fault detector

·         programming in C optional

·         IP20

Introduction

Most of the Industry 4.0 applications rely on the sensor and actuator data out of the machine.

With the new Bihl+Wiedemann BWU3862 Gateway with ASi-5 and an integrated OPC UA server, you are able to get this data directly out of the machine – without any preprocessing.

Get the information wherever needed – at your HMI panel or your cloud services
