go back- Publish date: 08/15/2023
- Product release date: 07/05/2023
- Product Version: V1.3.0.0 / V2.3.0.6
- Product Webpage
- Product descriptor (URL)

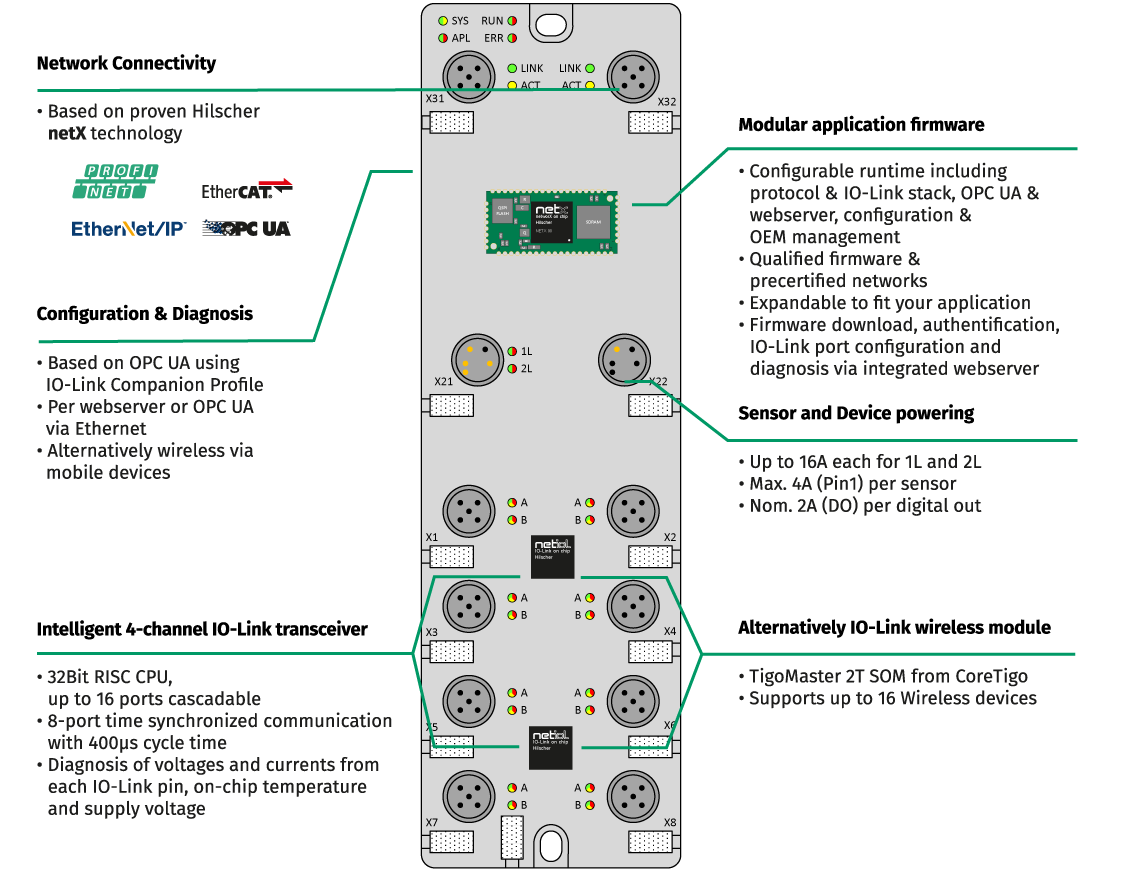

netFIELD デバイス IP67 - IO-Link マスタークラス A / OPC UA サーバー
netFIELD Device テクノロジープラットフォームは、IO-Link センサ（有線または無線）を要求の厳しいリアルタイム Ethernet ネットワークに接続します。コンフィグレーションと診断には、IO-Linkコンパニオンプロフィールを備えた統合OPC UAサーバが使用されます。これは確立されたnetX 90テクノロジとHilscherの新しいnetIOLチップを組み合わせたもので、プラントエラーを検出するための診断機能を追加したインテリジェントなIO-Linkトランシーバです。
Product details
Markets:
|
Category: I/O |
Supported Profiles and Facets
Application Profiles:
UACore 1.04
- Micro Embedded Device 2017 Server Profile
Additional Facets:
UACore 1.04
- A & C Acknowledgeable Alarm Server Facet
- A & C Address Space Instance Server Facet
- A & C Alarm Server Facet
- A & C Base Condition Server Facet
- A & C Enable Server Facet
- Global Certificate Management Server Facet
- Method Server Facet
Security Policies:
UACore 1.04
- SecurityPolicy [B] – Basic256Sha256
- SecurityPolicy – None
User Tokens:
UACore 1.04
- User Token – Anonymous Server Facet
- User Token – User Name Password Server Facet
Supported Conformance Units
UACore 1.04
- Attribute Write Values
- Base Info Engineering Units
- Base Info GetMonitoredItems Method
- Base Info Server Capabilities
- Security Administration
- Session Change User
- Subscription Minimum 05
Information Models
- IOLink 1.00
Product certification history
| Certified Profiles | Micro Embedded Device 2017 Server Profile |
| Certificate Number | 2307CE00FF |
| Certification Date | 07/11/2023 |
| Expiration Date | 07/31/2026 |
| CTT Version | 1.04.11-01.00.500 |
| Additional Facets | Method Server Facet, Global Certificate Management Server Facet, A & C Base Condition Server Facet, A & C Address Space Instance Server Facet, A & C Acknowledgeable Alarm Server Facet, A & C Alarm Server Facet |
| Security Policies | SecurityPolicy – None, SecurityPolicy [B] – Basic256Sha256 |
| User Identity Tokens | User Token – Anonymous Server Facet, User Token – User Name Password Server Facet |
| Companion Facets | OPC 30120: IO-Link Devices and IO-Link Masters V1.00 |
| Product Name | netFIELD Device IP67 - IO-Link Master Class A / OPC UA Server |
| Certified Product Version | V1.3.0.0 / V2.3.0.6 |
| Product MD5 Hash | b84eccbbd0d59991ee58e099a2cfe136 |
