OPC UA Server Simulator - Free Product
Integration Objects integrationobjects.com

OPC UA Server Simulator - Free Product

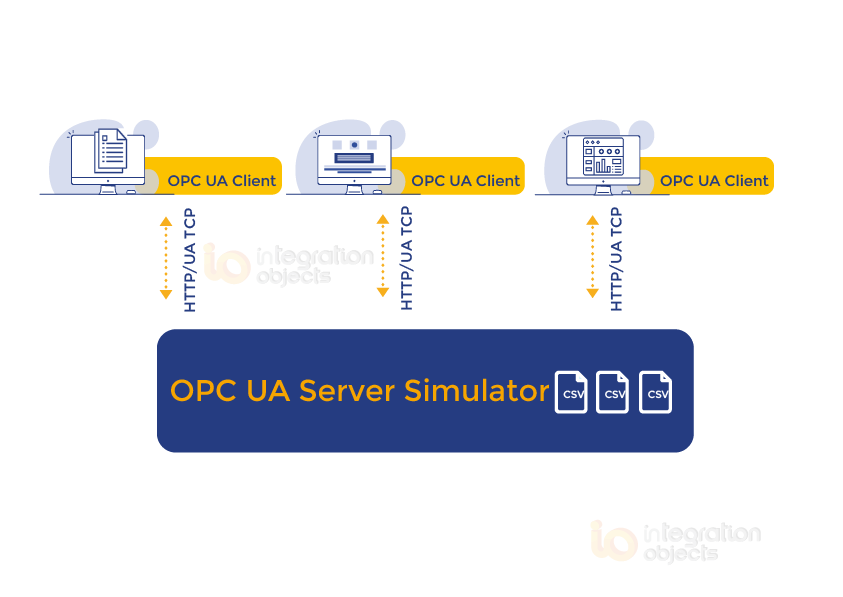

OPC UA Server Simulator is a free-to-use and freely distributable software utility designed to simulate an OPC Unified Architecture (OPC UA) server for testing and development purposes. It enables developers, automation engineers, and system integrators to test OPC UA client applications without requiring a connection to live industrial equipment.

The simulator supports the OPC UA Data Access and Historical Access information models, providing simulated real-time and historical data that OPC UA clients can browse, monitor, and retrieve. Users can configure custom tags and define data simulation sets using CSV files, allowing them to tailor the simulated server address space and data values to their testing requirements.

By providing a controlled environment with configurable process values and historical data, OPC UA Server Simulator helps validate OPC UA client connectivity, test data access functionality, and troubleshoot interoperability issues during application development and commissioning.

Available free of charge and for redistribution, OPC UA Server Simulator is a practical testing utility for developers and organizations building or maintaining OPC UA-based industrial applications.

Product details

Markets:
  • Aerospace & Defense
  • Automotive
  • Chemicals
  • Energy and Power
  • Food & Beverages
  • Machine Manufacturing
  • Medical Devices
  • Metals & Mining
  • Oil & Gas
  • Packaging
  • Pharmaceuticals
  • Pulp & Paper
  • Semiconductor & Electronics
  • Water & Waste Management
 Category: Gateway

Supported Profiles and Facets

Application Profiles:

  • UACore 1.04
    • Standard 2017 UA Server Profile

Security Policies:

  • UACore 1.04
    • SecurityPolicy [B] – Basic256Sha256
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – None

User Tokens:

  • UACore 1.04
    • User Token – Anonymous Facet
    • User Token – User Name Password Server Facet
    • User Token – X509 Certificate Server Facet

Capacities
Max. SecureChannels: 100
Max. Sessions: 100
Max. Subscriptions: 100
Max. Monitored Items: 10000
Max. Monitored Items Per Subscription: 1000
Monitored Item Queue: 100
Publish Request Queue: 20
Fastest Sampling: 1000
Fastest Publishing: 100
Number Of Continuation Points: 100
