• Publish date: 02/08/2018
  • Product release date: 02/08/2018
  • Product Version: 3.1.0.1081
DeviceGateway

DeviceGateway

DeviceGateway is for gathering production information and do the gateway to IoT services.
It realizes sending/receiving data from 170+ industrial field devices(PLC, CNC etc.) with just configuring.
So it realizes building an IoT system in a short time.
We support a variety of communication interfaces including OPC UA which is an industry standard interface in the industrial field, MQTT(S), HTTP(S), SQL, Amazon Kinesis Stream, HULFT IoT.

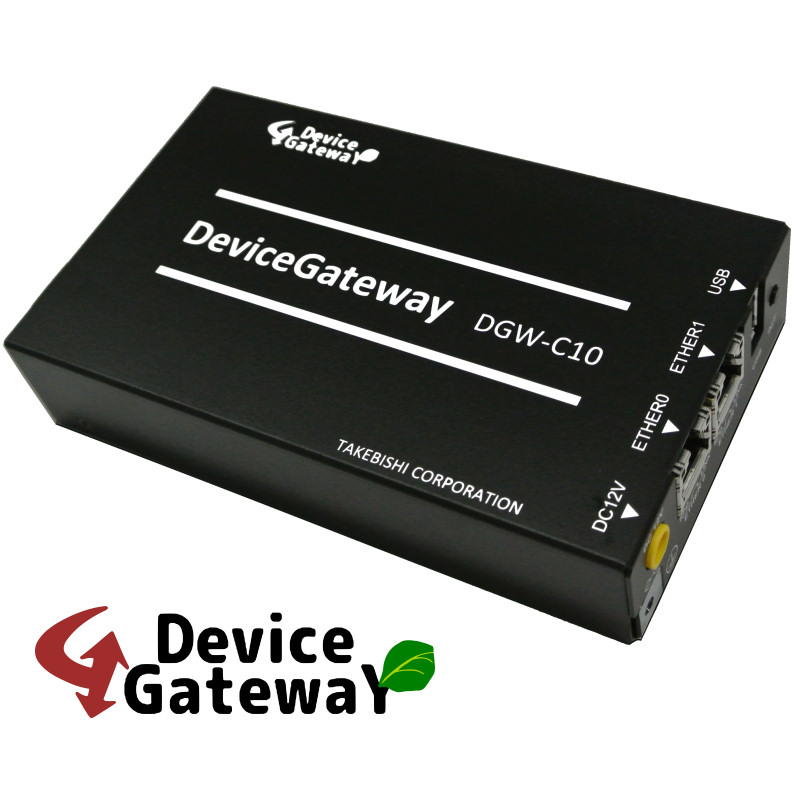

You can select compact model DGW-C10 or factory model DGW-F20 which has I/O.

Compatible Device Vendors
  • Mitsubishi MELSEC
  • Omron SYSMAC
  • Yokogawa FA-M3
  • Jtekt TOYOPUC
  • Hitachi HIDIC
  • Sharp SATELLITE
  • Fuji MICREX
  • Panasonic FP
  • Keyence KV
  • Toshiba V
  • Azbil
  • IAI
  • Fanuc PMC
  • GE 90-30
  • Rockwell ControlLogix
  • Siemens Simatic
  • Cognex Dataman/Insight
  • Delta
  • Lsis
  • Koyo
  • Idec
  • 3S
  • Yasukawa MP
  • M-System R3
  • Anywire
  • Wago
  • Hakko Monitouch
  • Eurotherm
  • RKC Instrument
  • Chino
  • Hioki Smartsite
  • Unitec
  • Modbus
  • BACnet
  • IEC61850
  • SLMP(CC-Link)
  • Digital Input/Output (DI/DO)
  • Relay Output (DO)
  • Analog Input (AI)
  • BLE Beacon
  • Serial Wireless Connection “DeviceAdapter”
  • User Defiend Protorol

Product details

Category: Gateway Subcategory: Edge Devices

Supported Profiles and Facets

Application Profiles:

  • UACore 1.03
    • Embedded UA Server Profile

Additional Facets:

  • UACore 1.03
    • Address Space Notifier Server Facet
    • Base Server Behaviour Facet
    • Core Server Facet
    • Data Access Server Facet
    • Embedded DataChange Subscription Server Facet
    • UA-TCP UA-SC UA Binary

Security Policies:

  • UACore 1.03
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – Basic256Sha256
    • SecurityPolicy – None

User Tokens:

  • UACore 1.03
    • User Token – Anonymous Facet
    • User Token – User Name Password Server Facet
    • User Token – X509 Certificate Server Facet

Product certification history

Certified Profiles Embedded UA Server Profile
Certificate Number 1806CE00A8
Certification Date 06/19/2018
Expiration Date 06/30/2021
CTT Version 1.03.340.380
Security Policies SecurityPolicy - Basic128Rsa15
SecurityPolicy - Basic256
SecurityPolicy - Basic256Sha256
Product Name Device Gateway
Certified Product Version 2.1.1.341
Embedded UA Server Profile
