go back- Publish date: 03/20/2026
- Product release date: 02/28/2022
- Product Version: 5.13.0
- Product Webpage

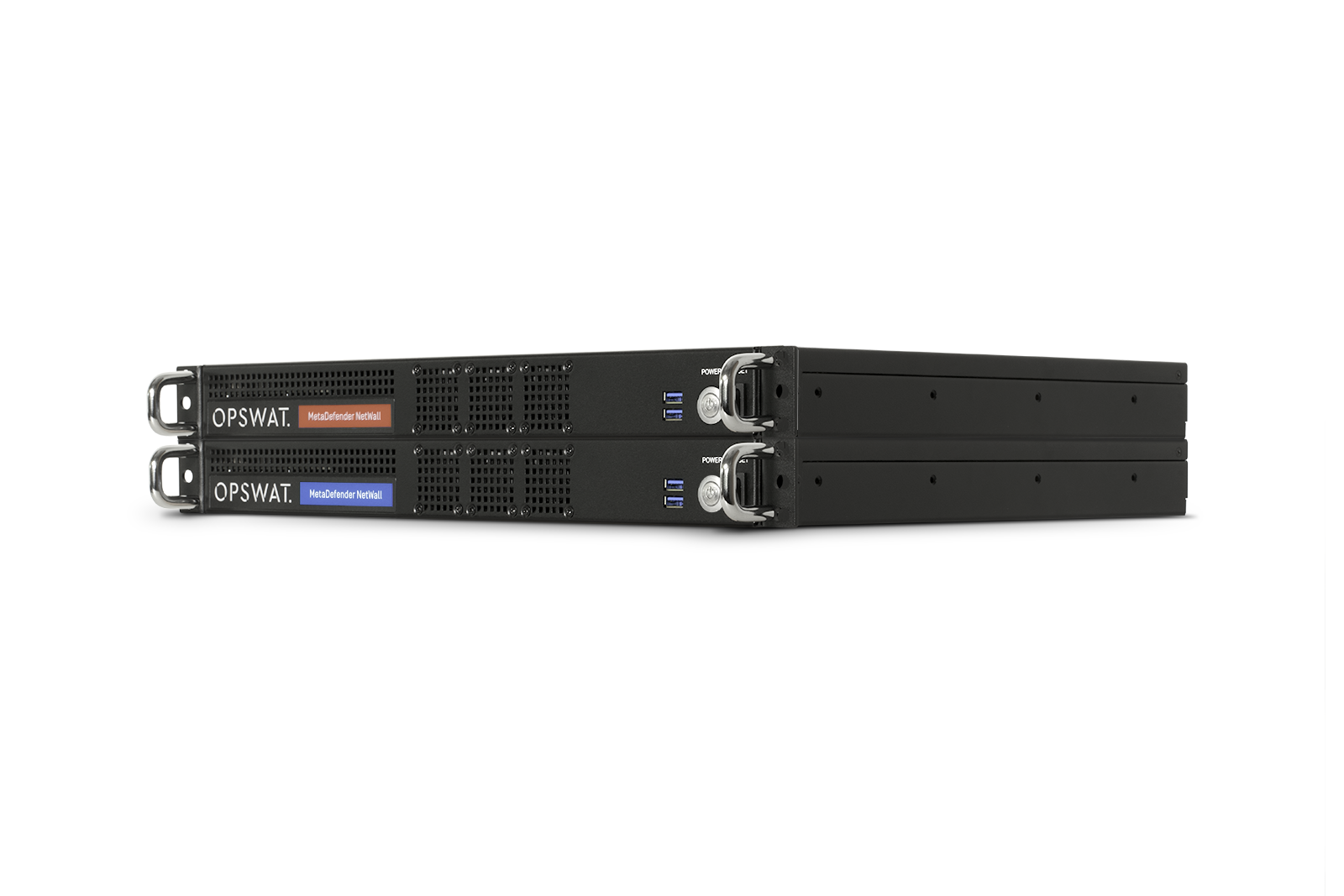

MetaDefender Bilateral Security Gateway
MetaDefender Bilateral Security Gateway (BSG) supports real-time replication and transfer of historians and SQL databases without compromising the security and integrity of your critical production systems. BSG strictly enforces one-way data flows. It also employs a proprietary bilateral mechanism to handle data replies needed by SQL databases and industrial historians hosted in your OT environment, which is completely transparent and requires no change to application configurations or work procedures
MetaDefender Bilateral Security Gateway supports OPC UA and OPC Classic (DA, A&E) unidirectional data transfer.
Product details
| Category: Gateway |
Supported Profiles and Facets
Application Profiles:
UACore 1.04
- Standard 2017 UA Server Profile
Security Policies:
UACore 1.04
- SecurityPolicy - Aes256-Sha256-RsaPss
- SecurityPolicy - PubSub-Aes256-CTR
- SecurityPolicy [B] – Basic256Sha256
- SecurityPolicy – Basic256
User Tokens:
UACore 1.04
- User Token – User Name Password Server Facet
Capacities |
|
| Max. SecureChannels: | 20 |
| Max. Sessions: | 20 |
| Max. Subscriptions: | 20 |
| Max. Monitored Items: | 1000000 |
| Max. Monitored Items Per Subscription: | 50000 |
| Monitored Item Queue: | 100000 |
| Publish Request Queue: | 50000 |
| Fastest Sampling: | 1 |
| Fastest Publishing: | 1 |
Supported Profiles and Facets
Application Profiles:
UACore 1.04
- Standard UA Client 2017 Profile
Security Policies:
UACore 1.04
- SecurityPolicy - Aes256-Sha256-RsaPss
- SecurityPolicy - PubSub-Aes256-CTR
- SecurityPolicy [B] – Basic256Sha256
- SecurityPolicy – Basic256
User Tokens:
UACore 1.04
- User Token – User Name Password Client Facet
- User Token – X509 Certificate Client Facet
Capacities |
|
| Max. SecureChannels: | 20 |
| Max. Sessions: | 20 |
| Max. Subscriptions: | 20 |
| Max. Monitored Items: | 1000000 |
| Max. Monitored Items Per Subscription: | 50000 |
| Monitored Item Queue: | 100000 |
| Publish Request Queue: | 1000001 |
| Fastest Sampling: | 1 |
| Fastest Publishing: | 1 |
- Data Access 2.05a
- Data Access 3.0
- Alarms and Events
- Data Access 2.05a
- Data Access 3.0
- Alarms and Events
