MetaDefender Optical Diode
OPSWAT Inc. www.opswat.com

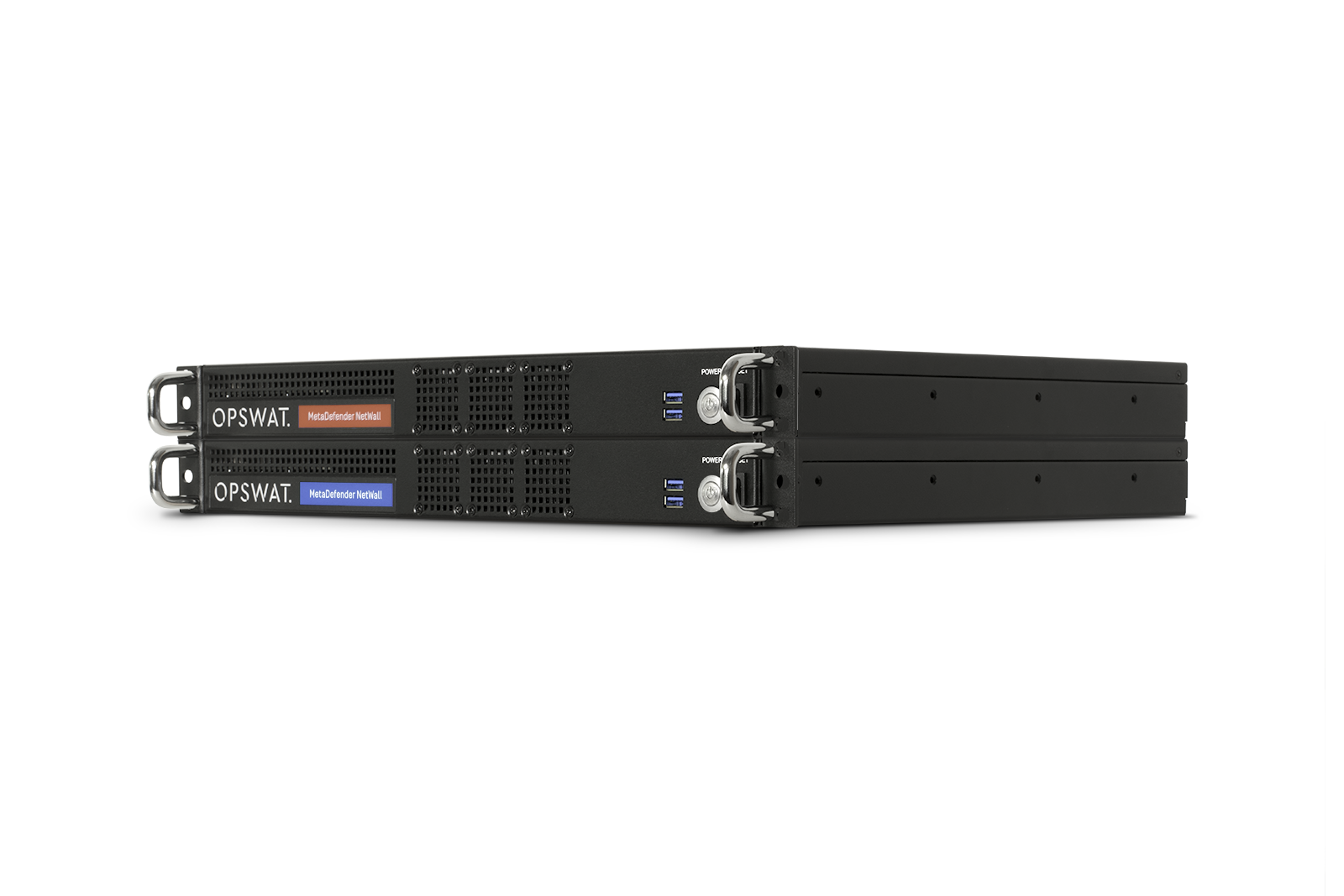

MetaDefender Optical Diode

MetaDefender Optical Diode serves as a deterministic isolation device which protects critical assets while allowing multiple data types to be transferred concurrently. The hardware-enforced, one-way optical link between the source and destination servers reliably transfers data over a non-routable protocol, ensuring complete security from network-borne threats. Optical Diode provides access to real-time OT data and enables secure IT/OT data and file transfers without the risk of introducing security threats to critical OT production networks and assets.

MetaDefender Optical Diode supports OPC UA and OPC Classic (DA, A&E) unidirectional data transfer.

Product details

Category: Gateway

Supported Profiles and Facets

Application Profiles:

  • UACore 1.04
    • Standard 2017 UA Server Profile

Security Policies:

  • UACore 1.04
    • SecurityPolicy - Aes256-Sha256-RsaPss
    • SecurityPolicy [B] – Basic256Sha256
    • SecurityPolicy – Basic256

User Tokens:

  • UACore 1.04
    • User Token – User Name Password Server Facet
    • User Token – X509 Certificate Server Facet

Supported Conformance Units

  • UACore 1.04
    • Address Space Base

Capacities
Max. SecureChannels: 20
Max. Sessions: 20
Max. Subscriptions: 20
Max. Monitored Items: 1000000
Max. Monitored Items Per Subscription: 50000
Monitored Item Queue: 100000
Publish Request Queue: 50000
Fastest Sampling: 1
Fastest Publishing: 1

Supported Profiles and Facets

Application Profiles:

  • UACore 1.04
    • Standard UA Client 2017 Profile

Security Policies:

  • UACore 1.04
    • SecurityPolicy - Aes256-Sha256-RsaPss
    • SecurityPolicy - PubSub-Aes256-CTR
    • SecurityPolicy [B] – Basic256Sha256
    • SecurityPolicy – Basic256

User Tokens:

  • UACore 1.04
    • User Token – User Name Password Client Facet
    • User Token – X509 Certificate Client Facet

Capacities
Max. SecureChannels: 20
Max. Sessions: 20
Max. Subscriptions: 20
Max. Monitored Items: 1000000
Max. Monitored Items Per Subscription: 50000
Monitored Item Queue: 100000
Publish Request Queue: 1000001
Fastest Publishing: 1
  • Data Access 2.05a
  • Data Access 3.0
  • Alarms and Events
  • Data Access 2.05a
  • Data Access 3.0
  • Alarms and Events
