OPC UA Universal Server
Integration Objects integrationobjects.com

OPC UA Universal Server

The OPC UA Universal Server can be built in minutes using the SIOTH Platform configurator

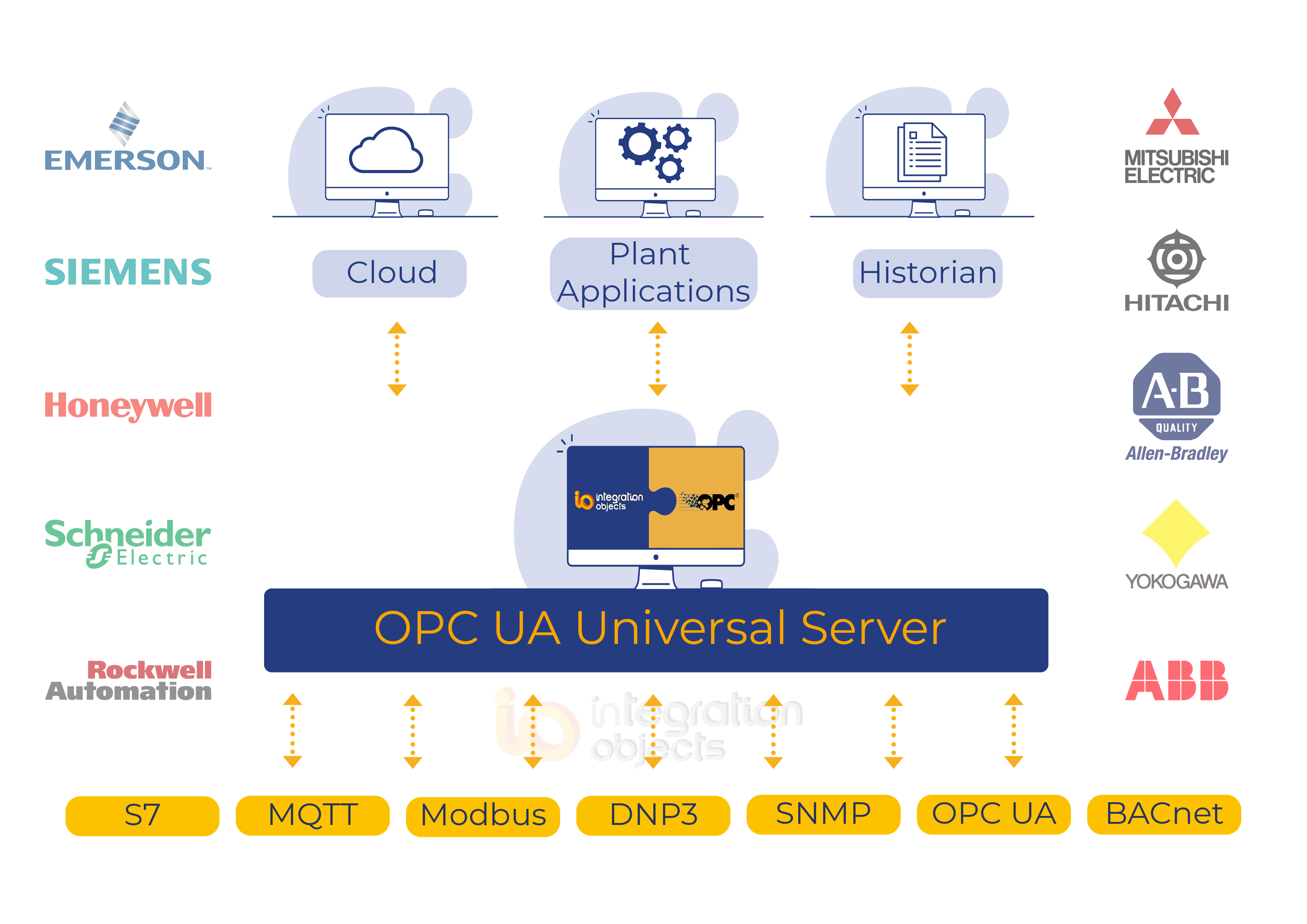

It collects data from a single or disparate data sources supporting multiple protocols in parallel.

The OPC UA Universal Server supports various industrial protocols while offering OPC UA, DA, HDA, and AE capabilities. Compliant with IEC 62443 industrial cybersecurity standards, the OPC UA Universal Server features multiple encryption modes. Furthermore, in case of disconnects, buffering capabilities and automatic reconnections are implemented.

An in case a reasoning engine is required, OPC UA Uniersal Server offers an optional rules & workflow module.



Product details

Markets:
  • Aerospace & Defense
  • Automotive
  • Chemicals
  • Energy and Power
  • Food & Beverages
  • Machine Manufacturing
  • Medical Devices
  • Metals & Mining
  • Oil & Gas
  • Packaging
  • Pharmaceuticals
  • Pulp & Paper
  • Semiconductor & Electronics
  • Water & Waste Management
 Category: Gateway

Supported Profiles and Facets

Application Profiles:

  • UACore 1.04
    • Standard 2017 UA Server Profile

Security Policies:

  • UACore 1.04
    • SecurityPolicy [B] – Basic256Sha256
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256

User Tokens:

  • UACore 1.04
    • User Token – Anonymous Facet
    • User Token – User Name Password Server Facet
    • User Token – X509 Certificate Server Facet

Capacities
Max. SecureChannels: 100
Max. Sessions: 100
Max. Subscriptions: 100
Max. Monitored Items: 10000
Max. Monitored Items Per Subscription: 1000
Monitored Item Queue: 100
Publish Request Queue: 20
Fastest Sampling: 1000
Fastest Publishing: 100
Number Of Continuation Points: 100
