- Publish date: 04/02/2014
- Product release date: 05/17/2022
- Product Version: 1.9.3
- Product Webpage
- Product descriptor (URL)
![ANSI C Based OPC UA Client Server SDK/Toolkit ANSI C Based OPC UA Client Server SDK/Toolkit](https://opcfoundation.org/wp-content/uploads/product-images/2_pic_C89SDK.png)
ANSI C Based OPC UA Client Server SDK/Toolkit
Write your own OPC UA Server in ANSI C

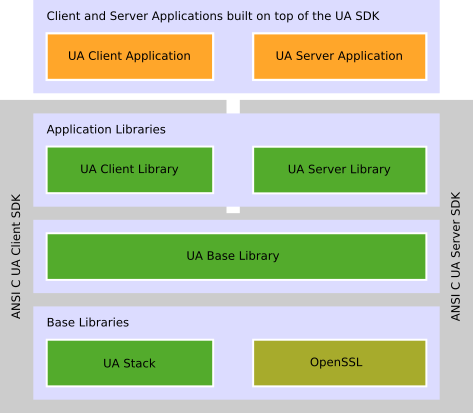

The SDK/Toolkit simplifies the UA stack APIs, implements common UA functionality needed in most or all UA applications, provides base functionality and helper functions, implements the security handling and provides samples for common use cases.
The application provides or consumes information via OPC UA. This layer contains the application specific logic and a mapping to OPC UA using the OPC SDKs.
The ANSI C OPC UA Server SDK provides an ANSI C library used to develop OPC UA Servers providing a standard interface to vendor specific systems. The OPC UA Server is usually used to describe the available information from a vendor system and to provide access to the data for external systems in a standard way.
The ANSI C OPC UA SDK is a compact OPC UA SDK designed for embedded devices which provides the basic infrastructure to create an OPC UA Server.
Supported OPC UA services
- FindServers, GetEndpoints
- CreateSession, ActivateSession, CloseSession
- Browse, BrowseNext, TranslateBrowsePathsToNodeIds
- RegisterNodes, UnregisterNodes
- Read, Write
- HistoryRead, HistoryUpdate
- Call
- CreateSubscription, ModifySubscription, DeleteSusbcription
- CreateMonitoredItems, ModifyMonitoredItems, DeleteMonitoredItems
- Publish, Republish
- SetPublishingMode, SetMonitoringMode, SetTriggering
Supported Features and Profiles
- Data Access
- Events
- Methods
- Alarms & Conditions
- Historical Access
- Complex Types
Free UaModeler for implementing CompanionModels and code generation included !
Product details
Category: SDK | Subcategory: Commercial SDK |
Supported Profiles and Facets
Application Profiles:
UACore 1.03
- Embedded UA Server Profile
- Micro Embedded Device Server Profile
- Nano Embedded Device Server Profile
- Standard UA Server Profile
UACore 1.04
- Embedded 2017 UA Server Profile
- Micro Embedded Device 2017 Server Profile
- Nano Embedded Device 2017 Server Profile
- Standard 2017 UA Server Profile
Security Policies:
UACore 1.03
- SecurityPolicy – Basic128Rsa15
- SecurityPolicy – Basic256
- SecurityPolicy – Basic256Sha256
- SecurityPolicy – None
UACore 1.04
- SecurityPolicy - Aes256-Sha256-RsaPss
- SecurityPolicy [A] - Aes128-Sha256-RsaOaep
- SecurityPolicy [B] – Basic256Sha256
- SecurityPolicy – Basic128Rsa15
- SecurityPolicy – Basic256
- SecurityPolicy – None
UACore 1.05
- SecurityPolicy - Aes256-Sha256-RsaPss
- SecurityPolicy [A] - Aes128-Sha256-RsaOaep
- SecurityPolicy [B] – Basic256Sha256
- SecurityPolicy – Basic128Rsa15
- SecurityPolicy – Basic256
- SecurityPolicy – None
User Tokens:
UACore 1.03
- User Token – Anonymous Facet
- User Token – User Name Password Server Facet
- User Token – X509 Certificate Server Facet
UACore 1.04
- User Token – Anonymous Facet
- User Token – Anonymous Server Facet
- User Token – User Name Password Server Facet
- User Token – X509 Certificate Server Facet
UACore 1.05
- User Token – Anonymous Facet
- User Token – User Name Password Server Facet
- User Token – X509 Certificate Server Facet
Supported Profiles and Facets
Application Profiles:
UACore 1.03
- Standard UA Client Profile
UACore 1.04
- Minimum UA Client Profile
- Standard UA Client 2017 Profile
Security Policies:
UACore 1.03
- SecurityPolicy – Basic128Rsa15
- SecurityPolicy – Basic256
- SecurityPolicy – Basic256Sha256
- SecurityPolicy – None
UACore 1.04
- SecurityPolicy - Aes256-Sha256-RsaPss
- SecurityPolicy [A] - Aes128-Sha256-RsaOaep
- SecurityPolicy [B] – Basic256Sha256
- SecurityPolicy – Basic128Rsa15
- SecurityPolicy – Basic256
- SecurityPolicy – None
UACore 1.05
- SecurityPolicy - Aes256-Sha256-RsaPss
- SecurityPolicy [A] - Aes128-Sha256-RsaOaep
- SecurityPolicy [B] – Basic256Sha256
- SecurityPolicy – Basic128Rsa15
- SecurityPolicy – Basic256
- SecurityPolicy – None
User Tokens:
UACore 1.03
- User Token – Anonymous Facet
- User Token – User Name Password Client Facet
- User Token – X509 Certificate Client Facet
UACore 1.04
- User Token – Anonymous Client Facet
- User Token – Anonymous Facet
- User Token – User Name Password Client Facet
- User Token – X509 Certificate Client Facet
UACore 1.05
- User Token – Anonymous Facet
- User Token – User Name Password Client Facet
- User Token – X509 Certificate Client Facet
Product certification history
Certified Profiles | Standard UA Server |
Certificate Number | 1712CE009C |
Certification Date | 12/12/2017 |
Expiration Date | 12/31/2020 |
CTT Version | 1.3.340.380 |
Additional Facets | UA Data Access Server Methods Server |
Security Policies | SecurityPolicy - Basic128Rsa15 SecurityPolicy - Basic256 SecurityPolicy - Basic256Sha256 |
User Identity Tokens | User Token - User Name Password User Token - X509 Certificates |
Product Name | UA ANSI-C Server |
Certified Product Version | 1.8.0.369 |
![Standard UA Server Standard UA Server](https://opcfoundation.org/wp-content/themes/opc/product-marketplace/img/certified-expired.jpg)
Certified Profiles | Standard UA Server |
Certificate Number | 1405CS004C |
Certification Date | 05/28/2014 |
Expiration Date | 05/31/2017 |
CTT Version | 1.2.334.200 |
Additional Facets | UA Data Access Server |
Product Name | ANSI C based OPC UA Server SDK |
Certified Product Version | 1.4.1.289 |
