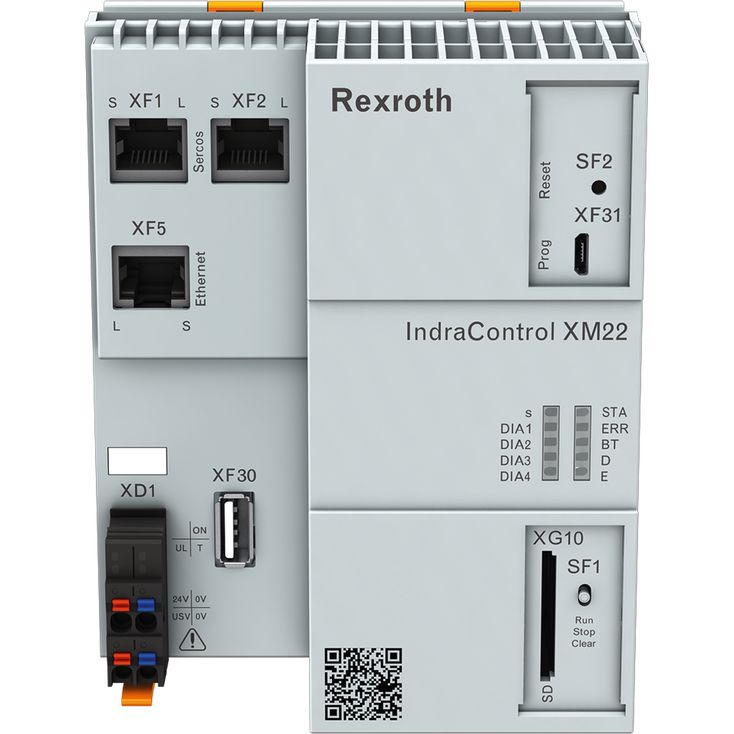

Motion control system MLC

Motion control system MLC

  • Based on scalable controller hardware
  • Sercos on-board, PROFIBUS and Multi-Ethernet optional
  • Easy extension of functions with extension modules (communication, technology)
  • Simple I/O integration through direct connection of IndraControl S20 I/O modules or by integrating decentralized I/O stations via different fieldbuses
  • Fast I/O real-time data processing in various operating modes (asynchronous, isochronous, cycle-synchronous)
  • PLC cycle times up to 250 µs



Product details

Markets:
  • Automotive
  • Food & Beverages
  • Machine Manufacturing
  • Packaging
  • Pulp & Paper
  • Semiconductor & Electronics
Category: Controller Subcategory: Motion Controller

Supported Profiles and Facets

Application Profiles:

  • UACore 1.04
    • Standard 2017 UA Server Profile

Security Policies:

  • UACore 1.04
    • SecurityPolicy [A] - Aes128-Sha256-RsaOaep
    • SecurityPolicy [B] – Basic256Sha256
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – None

User Tokens:

  • UACore 1.04
    • User Token – Anonymous Facet
    • User Token – User Name Password Server Facet

Supported Profiles and Facets

Application Profiles:

  • UACore 1.04
    • Minimum UA Client Profile

Security Policies:

  • UACore 1.04
    • SecurityPolicy [A] - Aes128-Sha256-RsaOaep
    • SecurityPolicy [B] – Basic256Sha256
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – None

User Tokens:

  • UACore 1.04
    • User Token – Anonymous Client Facet
    • User Token – User Name Password Client Facet
