go back- Publish date: 01/07/2026
- Product release date: 01/26/2026
- Product Version: 1.N1
- Product Webpage

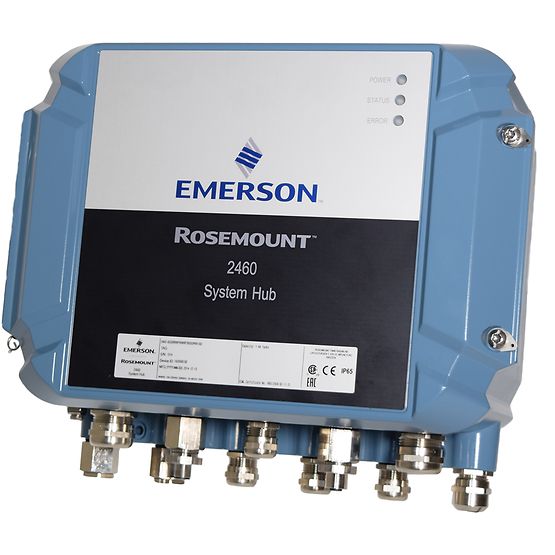

Rosemount 2460 System Hub
The Rosemount 2460 System Hub transfers real time tank gauging data from field devices such as radar level gauges, pressure and temperature transmitters to the Rosemount TankMaster™, Host and DCS systems. The Rosemount 2460 supports system redundancy and emulation of other vendor devices.
Product details
Markets:
|
Category: Gateway |
Supported Profiles and Facets
Application Profiles:
UACore 1.04
- Embedded 2017 UA Server Profile
Security Policies:
UACore 1.04
- SecurityPolicy - Aes256-Sha256-RsaPss
- SecurityPolicy [A] - Aes128-Sha256-RsaOaep
- SecurityPolicy [B] – Basic256Sha256
- SecurityPolicy – Basic128Rsa15
- SecurityPolicy – Basic256
- SecurityPolicy – None
User Tokens:
UACore 1.04
- User Token – Anonymous Facet
- User Token – User Name Password Server Facet
Supported Conformance Units
UACore 1.04
- Attribute Write Values
- Base Info Diagnostics
- Base Info Engineering Units
- Base Info Server Capabilities
- Security Administration
- Security – No Application Authentication
- Session Change User
Capacities |
|
| Max. SecureChannels: | 3 |
| Max. Sessions: | 3 |
| Max. Subscriptions: | 30 |
| Max. Monitored Items: | 20000 |
| Max. Monitored Items Per Subscription: | 6400 |
| Publish Request Queue: | 10 |
| Fastest Sampling: | 1000 |
| Fastest Publishing: | 1000 |
Product certification history
| Certified Profiles | Embedded 2017 UA Server Profile |
| Certificate Number | 2512CE0122 |
| Certification Date | 12/04/2025 |
| Expiration Date | 12/31/2028 |
| CTT Version | 1.04.11-01.00.508 |
| Security Policies | SecurityPolicy – None, SecurityPolicy – Basic128Rsa15, SecurityPolicy – Basic256, SecurityPolicy [B] – Basic256Sha256, SecurityPolicy [A] - Aes128-Sha256-RsaOaep, SecurityPolicy - Aes256-Sha256-RsaPss |
| User Identity Tokens | User Token – Anonymous Facet, User Token – User Name Password Server Facet |
| Product Name | Rosemount 2460 System Hub |
| Certified Product Version | 1.N1 |
| Product MD5 Hash | 2460_SystemHub_FW_1.N1_Build_11525.bin: d63a3818f269c60b02a905364af55730, 2460_SystemHub_FW_1.N1_Build_11525.bin.sha256: e11a6b8da16fbd9c33ac4961d7453a46 |
