  • OMRON Corporation - Omron NJ5 Machine Automation Controller
  • Publish date: 11/02/2017
  • Product release date: 11/02/2017
  • Product Version: 1.06.01
  • Product Webpage
Omron NJ5 Machine Automation Controller
OMRON Corporation www.ia.omron.com

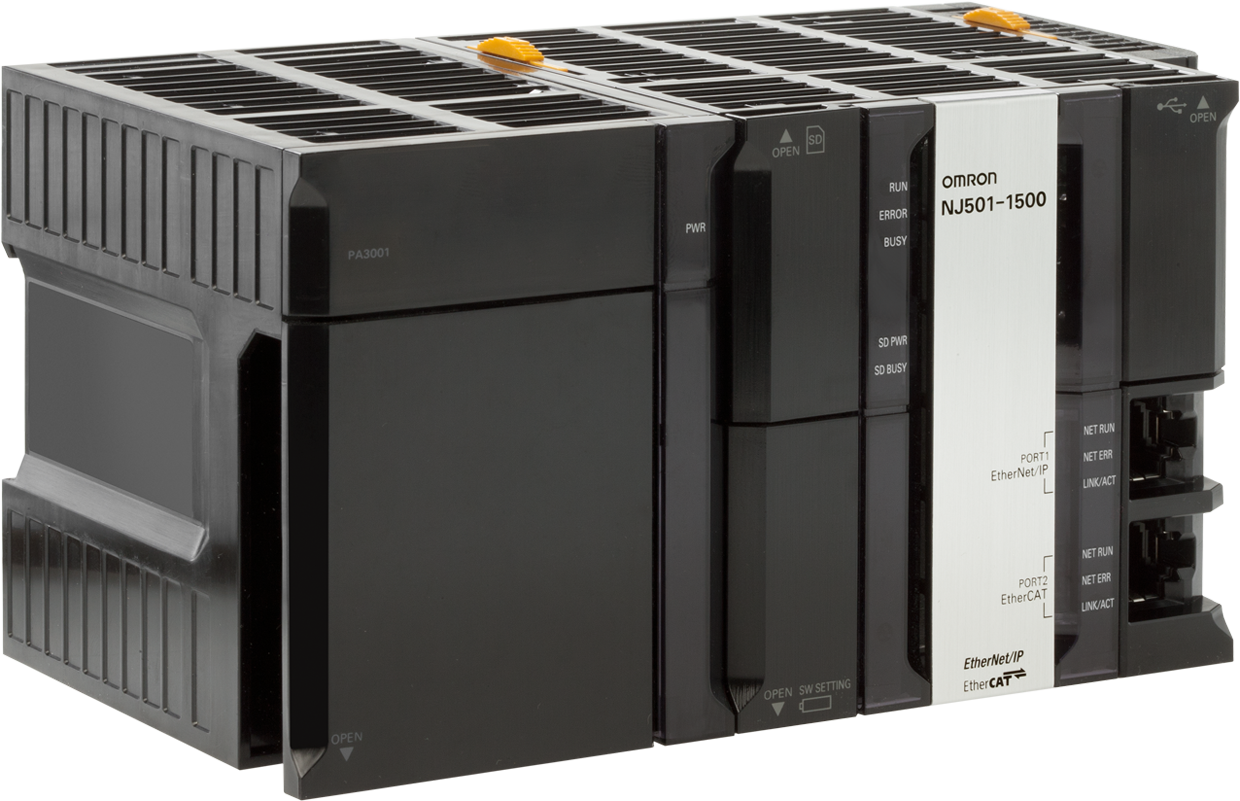

Omron NJ5 Machine Automation Controller

NJ501 series PLC is officially certified by OPC Foundation and embeds OPC UA server as a standard feature.

Machine automation controller that covers functions and high-speed processing required for machine control and safety, reliability and maintainability that are the features of industrial controllers. Ideal for large-scale, fast, and high-accurate control with up to 64 axes.

Product details

Markets:
  • Automotive
  • Chemicals
  • Energy and Power
  • Food & Beverages
  • Machine Manufacturing
  • Medical Devices
  • Metals & Mining
  • Oil & Gas
  • Packaging
  • Pharmaceuticals
  • Pulp & Paper
  • Semiconductor & Electronics
  • Water & Waste Management
 Category: Controller Subcategory: PLC

Supported Profiles and Facets

Application Profiles:

  • UACore 1.03
    • Micro Embedded Device Server Profile
  • UACore 1.04
    • Embedded 2017 UA Server Profile

Security Policies:

  • UACore 1.03
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – Basic256Sha256
    • SecurityPolicy – None
  • UACore 1.04
    • SecurityPolicy - Aes256-Sha256-RsaPss
    • SecurityPolicy [A] - Aes128-Sha256-RsaOaep
    • SecurityPolicy [B] – Basic256Sha256
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – None

User Tokens:

  • UACore 1.03
    • User Token – Anonymous Facet
    • User Token – User Name Password Server Facet
  • UACore 1.04
    • User Token – Anonymous Facet
    • User Token – User Name Password Server Facet

Information Models

  • PackML 1.01
  • PLCopen IEC61131-3 FunctionBlocks 1.x

Product certification history

Certified Profiles Embedded 2017 UA Server Profile
Certificate Number 2309CE0103
Certification Date 09/02/2023
Expiration Date 09/02/2026
CTT Version 1.04.11-01.00.502
Security Policies SecurityPolicy – Basic128Rsa15,
SecurityPolicy – Basic256,
SecurityPolicy [B] – Basic256Sha256,
SecurityPolicy [A] - Aes128-Sha256-RsaOaep,
SecurityPolicy - Aes256-Sha256-RsaPss
User Identity Tokens User Token – Anonymous Server Facet,
User Token – User Name Password Server Facet
Product Name NJ5 Series Controller
Certified Product Version V1.06.01
Product MD5 Hash c2a73069ea52309920c54281a36e0c3a
Embedded 2017 UA Server Profile
Certified Profiles Micro Embedded Device Server
Certificate Number 2012CE00D0
Certification Date 12/02/2020
Expiration Date 12/31/2023
CTT Version 1.03.341.396
Security Policies SecurityPolicy - Basic128Rsa15,
SecurityPolicy - Basic256,
SecurityPolicy - Basic256Sha256
User Identity Tokens User Token - Anonymous
User Token - User Name Password
Product Name NJ5 Series Controller
Certified Product Version 1.03.04.0001
Product MD5 Hash a65b9ee0b2be11b106347cba6438eaea
Micro Embedded Device Server
Certified Profiles Micro Embedded Device Server Profile
Certificate Number 1710CE0092
Certification Date 10/25/2017
Expiration Date 10/31/2020
CTT Version 1.2.336.273
Security Policies SecurityPolicy - Basic128Rsa15
SecurityPolicy - Basic256
SecurityPolicy - Basic256Sha256
User Identity Tokens User Token - User Name Password Server
Product Name NJ5 Series
Certified Product Version 1.00.00.0001
Micro Embedded Device Server Profile
