go back- Publish date: 03/06/2014
- Product release date: 03/06/2014
- Product Version: 4.4.44.0
- Product Webpage

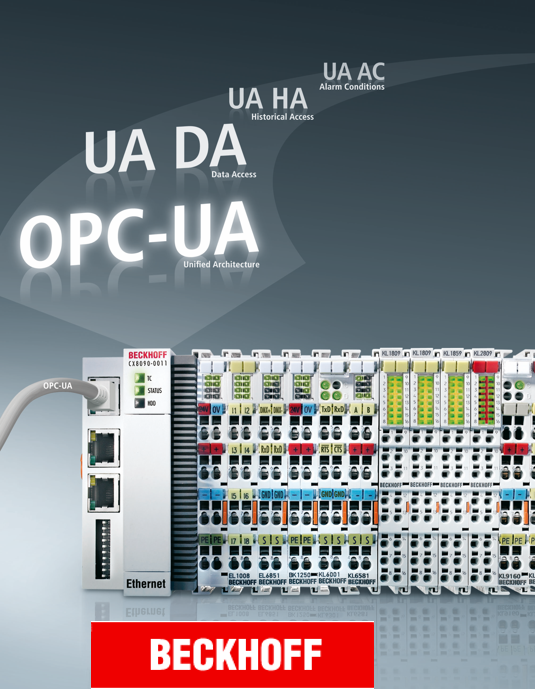

TF6100 | TC3 OPC UA
OPC UA Server, UA Client and UA Gateway functionality integrated into automation controller
TwinCAT OPC UA Server
- certified in the OPC Laboratory, Europe
- functions: DataAccess / HistoricalAccess /
- PLC Function blocks for diagnosis and restart
- OPC-UA server namespace always in sync with PLC logic
- supports the following OPC UA functions: Data Access, Historical Data Access, Alarms & Conditions
- Intermediate storage of data on the server: interruption of the communication connection does not lead to loss of data.
- graphical configurator for simple handling of local and remote OPC UA servers
- definition of user/groups-based access rights at namespace and node level
- support of client/server certificates to establish secure communication
TwinCAT OPC UA Gateway
- OPC UA client functionalities for DataAccess and method calls
- high-performance, free-of-charge OPC COM DA server
- enables aggregation of multiple, subordinate TwinCAT OPC UA servers
- support of client/server certificates to establish secure communication
TwinCAT OPC UA Client
- OPC UA client functionalities for DataAccess and method calls
- supports OPC UA communication with remote OPC UA servers
- available as PLCopen-compliant PLC function block or as TwinCAT I/O device
- support of client/server certificates to establish secure communication
Product details
| Category: Controller |
Supported Profiles and Facets
Application Profiles:
UACore 1.03
- Standard UA Server Profile
Additional Facets:
UACore 1.03
- Data Access Server Facet
- Method Server Facet
Security Policies:
UACore 1.03
- SecurityPolicy – Basic128Rsa15
- SecurityPolicy – Basic256
- SecurityPolicy – Basic256Sha256
- SecurityPolicy – None
UACore 1.04
- SecurityPolicy - Aes256-Sha256-RsaPss
- SecurityPolicy [A] - Aes128-Sha256-RsaOaep
User Tokens:
UACore 1.03
- User Token – Anonymous Facet
- User Token – User Name Password Server Facet
- User Token – X509 Certificate Server Facet
Supported Profiles and Facets
Application Profiles:
UACore 1.04
- Minimum UA Client Profile
Additional Facets:
UACore 1.03
- AddressSpace Lookup Client Facet
- Attribute Read Client Facet
- Attribute Write Client Facet
- Base Client Behaviour Facet
- Core Client Facet
- DataChange Subscriber Client Facet
- Discovery Client Facet
- Method Client Facet
Security Policies:
UACore 1.03
- SecurityPolicy – Basic128Rsa15
- SecurityPolicy – Basic256
- SecurityPolicy – Basic256Sha256
- SecurityPolicy – None
UACore 1.04
- SecurityPolicy - Aes256-Sha256-RsaPss
- SecurityPolicy [A] - Aes128-Sha256-RsaOaep
User Tokens:
UACore 1.03
- User Token – Anonymous Facet
- User Token – User Name Password Client Facet
- User Token – X509 Certificate Client Facet
Product certification history
| Certified Profiles | Minimum UA Client Profile |
| Certificate Number | 2203CE00DE |
| Certification Date | 03/21/2022 |
| Expiration Date | 03/31/2025 |
| CTT Version | 1.03.341.396 |
| Additional Facets | Core 2017 Client Facet, Base Client Behaviour Facet, Discovery Client Facet, AddressSpace Lookup Client Facet, Attribute Read Client Facet, Attribute Write Client Facet, Method Client Facet, DataChange Subscriber Client Facet |
| Security Policies | SecurityPolicy – None, SecurityPolicy – Basic128Rsa15, SecurityPolicy – Basic256, SecurityPolicy – Basic256Sha256, SecurityPolicy – Aes128-Sha256-RsaOaep, SecurityPolicy – Aes256-Sha256-RsaPss |
| User Identity Tokens | User Token – Anonymous, User Token – User Name Password |
| Product Name | TF6100 OPC UA Client |
| Certified Product Version | 4.4.17.0 |
| Product MD5 Hash | af41f43963bc64ee8da3209fca211851 |
| Certified Profiles | Standard UA Server Profile |
| Certificate Number | 2203CE00DD |
| Certification Date | 02/28/2022 |
| Expiration Date | 02/28/2025 |
| CTT Version | 1.03.341.396 |
| Additional Facets | Data Access Server Facet, Method Server Facet |
| Security Policies | SecurityPolicy – None, SecurityPolicy – Basic128Rsa15, SecurityPolicy – Basic256, SecurityPolicy – Basic256Sha256, SecurityPolicy – Aes128-Sha256-RsaOaep, SecurityPolicy – Aes256-Sha256-RsaPss |
| User Identity Tokens | User Token – Anonymous, User Token – User Name Password, User Token – X509 Certificate |
| Product Name | TF6100 TwinCAT 3 OPC UA Server |
| Certified Product Version | 4.4.44.0 |
| Product MD5 Hash | d2c878109193c4a611bdfe37e522aeac |
| Certified Profiles | Standard UA Server |
| Certificate Number | 1506CE006B |
| Certification Date | 06/11/2015 |
| Expiration Date | 06/30/2018 |
| CTT Version | 1.2.335.238 |
| Product Name | TwinCAT OPC UA |
| Certified Product Version | 2.1.0.26 |
