  • Publish date: 07/06/2022
  • Product release date: 06/16/2016
  • Product Version: 1.04.9.401
  • Product Webpage

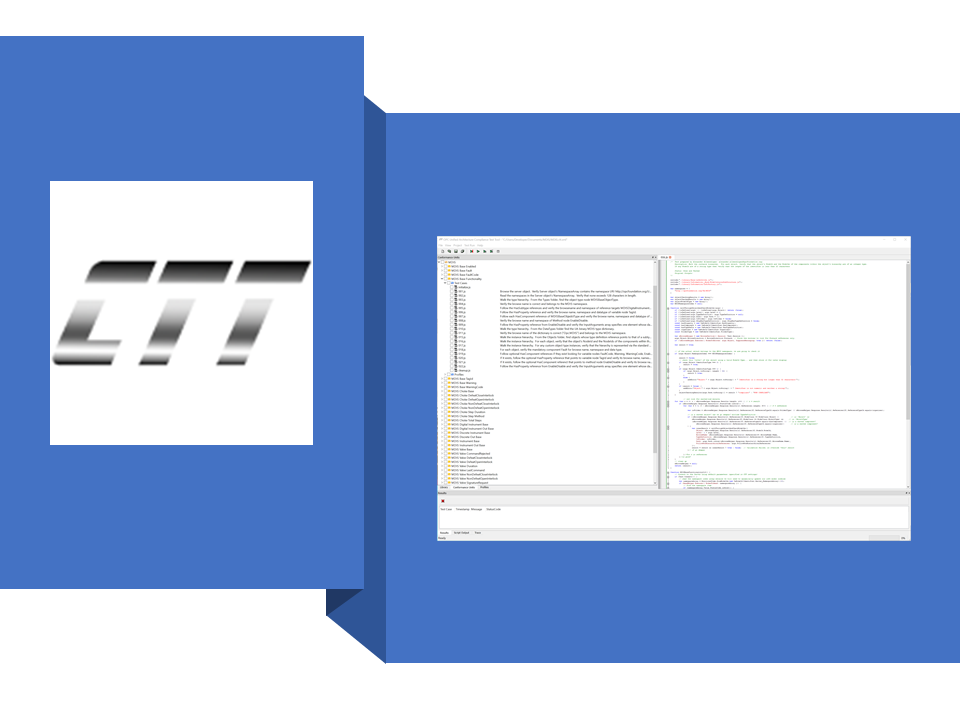

UACTT
OPC Foundation www.opcfoundation.org

UACTT

The CTT can be used to test OPC UA Client and Server products for compliance to the OPC UA specification. Multiple versions of the CTT are maintained in order to ensure that products developed against earlier versions of the OPC UA specification can continue to be tested for compliance to those specification versions and associated profiles.

 Please refer to the UA Profile Reporting tool for a list of Profiles, Facets, and Conformance Units, matching the organization of tests within this tool.

Profile for older version of the OPC Foundation specification are also available

The UA Compliance Test Tool is exclusively for active OPC Foundation Corporate Members only and cannot be redistributed outside of the members’ organization.  It is also available as a Service for Non-Members.

Product details

Category: Tools Subcategory: Testing

Supported Profiles and Facets

Application Profiles:

  • UACore 1.03
    • Embedded UA Server Profile
    • Micro Embedded Device Server Profile
    • Nano Embedded Device Server Profile
    • Standard UA Server Profile
  • UACore 1.04
    • Embedded 2017 UA Server Profile
    • Micro Embedded Device 2017 Server Profile
    • Nano Embedded Device 2017 Server Profile
    • Standard 2017 UA Server Profile

Additional Facets:

  • UACore 1.03
    • A & C Acknowledgeable Alarm Server Facet
    • A & C Address Space Instance Server Facet
    • A & C Alarm Server Facet
    • A & C Base Condition Server Facet
    • A & C CertificateExpiration Server Facet
    • A & C Enable Server Facet
    • A & C Exclusive Alarming Server Facet
    • A & C Non-Exclusive Alarming Server Facet
    • A & C Refresh2 Server Facet
    • Attribute WriteMask Server Facet
    • Auditing Server Facet
    • Core Server Facet
    • Data Access Server Facet
    • Durable Subscription Server Facet
    • Embedded DataChange Subscription Server Facet
    • Enhanced DataChange Subscription Server Facet
    • Historical Aggregate Server Facet
    • Method Server Facet
    • Standard DataChange Subscription Server Facet
    • Standard Event Subscription Server Facet
    • UA-TCP UA-SC UA Binary
  • UACore 1.04
    • A & C Acknowledgeable Alarm Server Facet
    • A & C Address Space Instance Server Facet
    • A & C Alarm Server Facet
    • A & C Base Condition Server Facet
    • A & C CertificateExpiration Server Facet
    • A & C Enable Server Facet
    • A & C Exclusive Alarming Server Facet
    • A & C Non-Exclusive Alarming Server Facet
    • A & C Refresh2 Server Facet
    • AliasName Server Facet
    • Attribute WriteMask Server Facet
    • Auditing Server Facet
    • Core 2017 Server Facet
    • Data Access Server Facet
    • Durable Subscription Server Facet
    • Embedded DataChange Subscription Server Facet
    • Enhanced DataChange Subscription 2017 Server Facet
    • Historical Aggregate Server Facet
    • Method Server Facet
    • Standard DataChange Subscription 2017 Server Facet
    • Standard Event Subscription Server Facet
    • UA-TCP UA-SC UA-Binary

Security Policies:

  • UACore 1.04
    • SecurityPolicy - Aes256-Sha256-RsaPss
    • SecurityPolicy [A] - Aes128-Sha256-RsaOaep
    • SecurityPolicy [B] – Basic256Sha256
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – None

User Tokens:

  • UACore 1.03
    • User Token – Anonymous Facet
    • User Token – User Name Password Server Facet
    • User Token – X509 Certificate Server Facet
  • UACore 1.04
    • User Token – Anonymous Facet
    • User Token – Anonymous Server Facet
    • User Token – User Name Password Server Facet
    • User Token – X509 Certificate Server Facet

Capacities
Max. SecureChannels: 1000
Max. Sessions: 1000

Information Models

  • DEXPI 1.00
  • PADIM 1.00
  • PLCopen IEC61131-3 FunctionBlocks 1.x

Supported Profiles and Facets

Application Profiles:

  • UACore 1.03
    • Standard UA Client Profile
  • UACore 1.04
    • Minimum UA Client Profile
    • Standard UA Client 2017 Profile

Additional Facets:

  • UACore 1.03
    • Attribute Read Client Facet
    • Attribute Write Client Facet
    • DataAccess Client Facet
    • Method Client Facet
  • UACore 1.04
    • Attribute Read Client Facet
    • Attribute Write Client Facet
    • DataAccess Client Facet
    • Method Client Facet

Security Policies:

  • UACore 1.03
    • SecurityPolicy – None
  • UACore 1.04
    • SecurityPolicy – None

User Tokens:

  • UACore 1.03
    • User Token – Anonymous Facet
    • User Token – User Name Password Client Facet
    • User Token – X509 Certificate Client Facet
  • UACore 1.04
    • User Token – Anonymous Client Facet
    • User Token – Anonymous Facet
    • User Token – User Name Password Client Facet
    • User Token – X509 Certificate Client Facet

Supported Profiles and Facets

Application Profiles:

  • UACore 1.04
    • Publisher UDP UADP Periodic Fixed Profile
